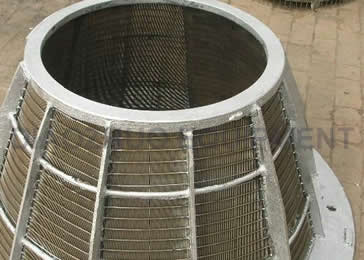

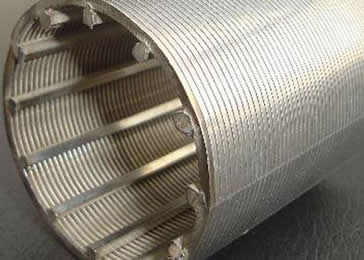

Usage: the welding joint of mineral filtrating mesh, coal washing mesh and centrifugal basket.
The main parameter:
1. the diameter of the canister:30mm-1200mm
2. Slot distance: slot≥0.1mm when diameter of canister ≤350mm;the slot≥0.25mm when diameter of canister ≤600mm;the slot≥0.3mm when diameter of canister ≤800mm
3. length of canister: Length≤6000mm
4. Material: Low Carbon Galvanized Steel (LCG)and Stainless Steel (SS-304)welding or threaded
5. V-wire size: diameter2mm-5mm
6. Rod size: diameter 2mm-5mm
7. Power: 380V,50HZ,3-phase
8. Measurement: 900mm x 1200mm x 2300mm
9. Weight: 6000kgs
why choose my welding mesh machine:
1, all electrical spares we use Panasonic (Japan)
PLC
Weinview (Taiwan) touch screen
Schneider (France) low-voltage apparatus
ABB (Switzerland Sweden) switch
Schneider (France) air switch
Omron (Japan) power supply
Delta (Taiwan) Variable-frequency Drive
Autonics (South Korea) encoder
Panasonic (Japan) servos
what u would like to know?
Q:
What's the machine price?
A: We need to know your wanted wire diameter, mesh hole size and mesh width.
Q: What's the production capacity?
A: The production capacity mainly depends on the welding speed and cross wire
space.
Q: Can you make voltage according to my requirement?
A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: What's the payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at
sight, or cash etc. It is negotiationable.
DZ machine advantages:
1. This machine adopts synchronous control technique. The center-control and welding time are composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.
3. Not only welding speed is fast, it is easy to learn and operate. Only need two workers.
4. The longitude wires are fed from rolls and through precise wire straightening and positioning device.
5. Step motor controls fallen cross structure and drawing materials are automatic.
6. It’s accurate, the edge of mesh are regular, it’s unnecessary to slice the side.
7. Drawing mesh adopts the device with the elastic link and fixing the mesh.
8. It’s easy to regulate the mesh holes and mesh size is rather accurate, welding aperture could be adjustable randomly within range.
9. The finished mesh could be in rolls or in panels.
