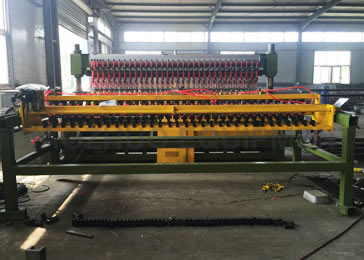

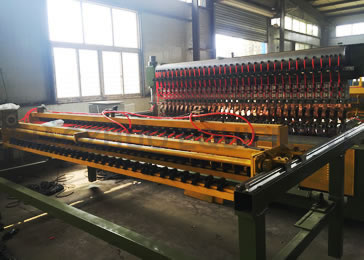

Pneumatic Wire Mesh Welding Machine

  • Pneumatic Wire Mesh Welding Machine
  • Pneumatic Wire Mesh Welding Machine
  • Pneumatic Wire Mesh Welding Machine

Describe

The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a PLC digital programming system, and the pore size can be adjusted only by direct input on a touch screen control panel
MESSAGE
Detailed introduction

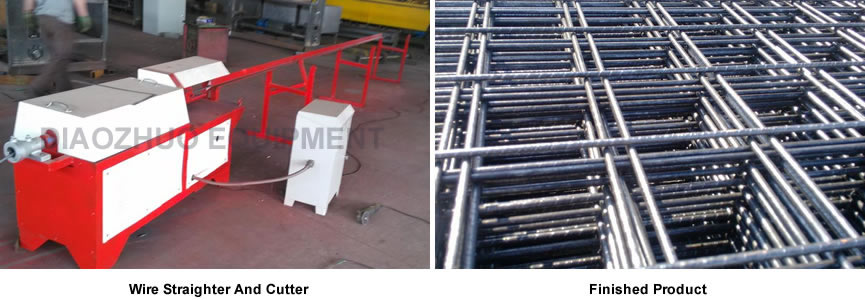

1. Feeding: Cross wire & Line wire are both pre-cut wires. Cross wires are feeded to the mould manually, while line wires are automatically feeded by the servo motor.

2. Welding: The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a PLC digital programming system, and the pore size can be adjusted only by direct input on a touch screen control panel; welding power is pneumatic, and welding pressure can be easily and intuitively adjusted.

3. Welding finish: The servo motor controls an automatic mesh drawing process until the whole mesh is welded, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.

Technical parameters

Wire diameter 6mm-12mm Warp feeding Pre-cut
Weft distance Min. 50mm Weft feeding Pre-cut
Warp distance 100mm-300mm Power supply AC380V-440V
Warp quantity 26 Welding width 2500mm
Mesh length 6m Welding speed 45 times/min
Dimensions 10*3.4*1.8(m)


Pneumatic Wire Mesh Welding Machine


why choose my welding mesh machine:



1, all electrical spares we use Panasonic (Japan) PLC
    Weinview (Taiwan) touch screen
    Schneider (France) low-voltage apparatus
    ABB (Switzerland Sweden) switch
    Schneider (France) air switch
    Omron (Japan) power supply
    Delta (Taiwan) Variable-frequency Drive
    Autonics (South Korea) encoder
    Panasonic (Japan) servos



what u would like to know?



Q: What's the machine price?
A: We need to know your wanted wire diameter, mesh hole size and mesh width.
Q: What's the production capacity?
A: The production capacity mainly depends on the welding speed and cross wire space.
Q: Can you make voltage according to my requirement?
A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: What's the payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.



DZ machine advantages:

1. This machine adopts synchronous control technique. The center-control and welding time are composed of digital and integrated electric circuit.

2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.

3. Not only welding speed is fast, it is easy to learn and operate. Only need two workers.

4. The longitude wires are fed from rolls and through precise wire straightening and positioning device.

5. Step motor controls fallen cross structure and drawing materials are automatic.

6. It’s accurate, the edge of mesh are regular, it’s unnecessary to slice the side.

7. Drawing mesh adopts the device with the elastic link and fixing the mesh.

8. It’s easy to regulate the mesh holes and mesh size is rather accurate, welding aperture could be adjustable randomly within range.

9. The finished mesh could be in rolls or in panels.
