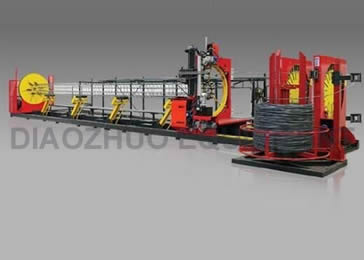

CNC Steel Truss Welding Production Line

Wire rod raw material release line, steel straightening, bending forming, automatic welding, cutting cut and finished product control of the fully automated production line. CNC steel truss welding production line is widely used in high-speed railway double block sleeper truss production and floor board truss production. (This product alias: triangular beam truss, sleeper truss, double block sleeper truss, reinforced truss, composite floor, composite floor, floor board, truss, truss welding, truss welding machine, automatic truss welding machine, truss molding, truss processing , Steel truss, steel truss processing equipment, steel truss welding equipment, steel truss forming equipment, truss welding machine)

★ truss step by the CNC servo motor control, high precision, easy to adjust
★ automatic control of the feeder mechanism to prevent chaos line
★ wire bending mechanism, forming a high degree of precision, fast and fast stability
★ user-friendly control interface, easy to operate, intuitive, intelligent
★ original electrical appliances are imported, by the Siemens, Yaskawa provide, stable and reliable
★ SCR trigger unit, low power consumption, small size, high reliability
★ automatic aggregate body, reduce labor intensity, improve efficiency
★ intelligent fault identification alarm system, easy to repair
★ automatic steel truss to bend the corner forming body, bending fine
★ perfect production management system, easy to operate, fast production
★ automatic side tendons forming mechanism, fast, high quality

type	SJL320A	SJL100A
welding power	4*175	4*175
power (kw)	80	80
ated voltage (volts)	380V 50Hz	380V 50Hz
System voltage (volts)	380V 50Hz	380V 50Hz
Cntrol voltage (volts)	24	24
Bending side bar diameter (mm)	5-8	5-8
Wire diameter (mm)	8-12	8-12
diameter of the lower string (mm)	8-12	8-12
height (mm)	50-320（Can be customized）	50-100（Can be customized）
width (mm)	50-150（Can be customized）	50-150（Can be customized）
length (mm)	200-12000	200-12000
ptch (mm)	190-300（Can be customized）	190-300（Can be customized）
cable	1*185mm²+1*195mm²	1*185mm²+1*195mm²
size (mm)	42000	42000
speed (m/min)	12-15	12-15
