Feeding mode: wefts are cut off in a straightening mode, warps are coiled.
The weft blanking mechanism takes materials from a hopper and is uniform and accurate in blanking, meshes do not need welding in a trimmed mode due to tidy edges (full-automatic welding); a power electronic synchronous control technology is adopted, both welding time and branch control welding are formed by a digital integrated circuit, the control accuracy is high, welding sports are firm, and burn marks cannot be formed.

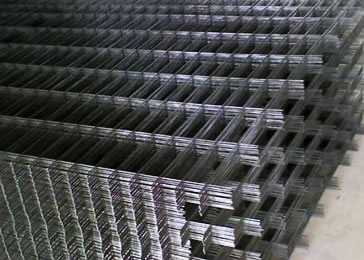

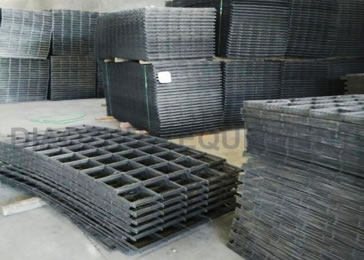

Finished products: flaky meshes
Meshes are drawn by an elastic pull rod and a grid positioning device, so that grids are easy to adjust slightly and high in dimensional accuracy, and the apertures of welded meshes can be adjusted at random in a certain range.
Application: welding of cultivation meshes and poultry meshes
Technical parameters:
| Wire diameter | 1.8-3.0mm | Rated voltage | 380V, 420V(customizable) |
| Welding aperture | 25X25-200X200MM | Rated power | Customized |
| Welding width | 1200mm | Dimensions | 1.8x2.5x1.8m |
| Warp quantity | 25 | Machine weight | 3.2t |
| Welding speed | 80times/min |
why choose my welding mesh machine:
1, all electrical spares we use Panasonic (Japan)
PLC
Weinview (Taiwan) touch screen
Schneider (France) low-voltage apparatus
ABB (Switzerland Sweden) switch
Schneider (France) air switch
Omron (Japan) power supply
Delta (Taiwan) Variable-frequency Drive
Autonics (South Korea) encoder
Panasonic (Japan) servos
what u would like to know?
Q:
What's the machine price?
A: We need to know your wanted wire diameter, mesh hole size and mesh width.
Q: What's the production capacity?
A: The production capacity mainly depends on the welding speed and cross wire
space.
Q: Can you make voltage according to my requirement?
A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: What's the payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at
sight, or cash etc. It is negotiationable.
DZ machine advantages:
1. This machine adopts synchronous control technique. The center-control and welding time are composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.
3. Not only welding speed is fast, it is easy to learn and operate. Only need two workers.
4. The longitude wires are fed from rolls and through precise wire straightening and positioning device.
5. Step motor controls fallen cross structure and drawing materials are automatic.
6. It’s accurate, the edge of mesh are regular, it’s unnecessary to slice the side.
7. Drawing mesh adopts the device with the elastic link and fixing the mesh.
8. It’s easy to regulate the mesh holes and mesh size is rather accurate, welding aperture could be adjustable randomly within range.

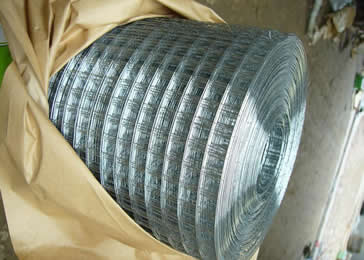

9. The finished mesh could be in rolls or in panels.
