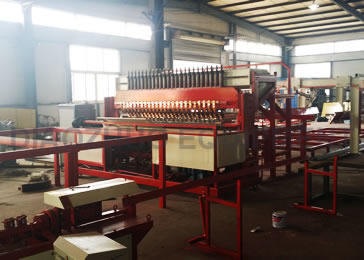

Reinforcing Mesh Welding Machine

  • Reinforcing Mesh Welding Machine

Describe

Operation processes: warps and wefts required by the equipment are pre-sheared by an automatic straightening cutting machine, the warps are placed on a corresponding warp groove, and the wefts are placed into a corresponding weft groove, and a fall feeder is controlled for automatic blanking and welding through a stepper motor respectively
MESSAGE
Detailed introduction

The automatic wire mesh welding machine is mainly used to weld fence and floor roof wire netting.
Operation processes: warps and wefts required by the equipment are pre-sheared by an automatic straightening cutting machine, the warps are placed on a corresponding warp groove, and the wefts are placed into a corresponding weft groove, and a fall feeder is controlled for automatic blanking and welding through a stepper motor respectively; the stepper motor controls a mesh drawing process to ensure accurate and uniform grids.

Both grid size and welding parameters are set by direct input on an operation panel, which is simple and accurate in operation.

Technical parameters:

Wire diameter 3-6mm Rated voltage 380V
Welding aperture 50x50-300x300mm Rated power 750kva
Welding width 2500mm Dimensions 6x3.2x1.8m
Warp quantity 48 Machine weight 4.2t
Welding speed 60 times/min welding mesh length 6-12m

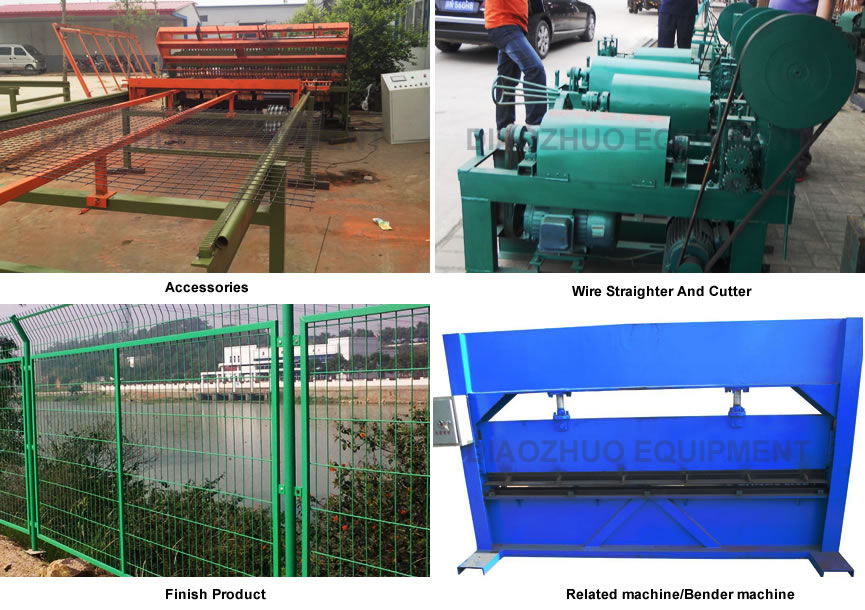

Reinforcing Mesh Welding Machine


why choose my welding mesh machine:



1, all electrical spares we use Panasonic (Japan) PLC
    Weinview (Taiwan) touch screen
    Schneider (France) low-voltage apparatus
    ABB (Switzerland Sweden) switch
    Schneider (France) air switch
    Omron (Japan) power supply
    Delta (Taiwan) Variable-frequency Drive
    Autonics (South Korea) encoder
    Panasonic (Japan) servos



what u would like to know?



Q: What's the machine price?
A: We need to know your wanted wire diameter, mesh hole size and mesh width.
Q: What's the production capacity?
A: The production capacity mainly depends on the welding speed and cross wire space.
Q: Can you make voltage according to my requirement?
A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: What's the payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.



DZ machine advantages:

1. This machine adopts synchronous control technique. The center-control and welding time are composed of digital and integrated electric circuit.

2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.

3. Not only welding speed is fast, it is easy to learn and operate. Only need two workers.

4. The longitude wires are fed from rolls and through precise wire straightening and positioning device.

5. Step motor controls fallen cross structure and drawing materials are automatic.

6. It’s accurate, the edge of mesh are regular, it’s unnecessary to slice the side.

7. Drawing mesh adopts the device with the elastic link and fixing the mesh.

8. It’s easy to regulate the mesh holes and mesh size is rather accurate, welding aperture could be adjustable randomly within range.

9. The finished mesh could be in rolls or in panels.
